Using Data Sources via OOJDBC in a Catalog
This topic introduces the main frame for OOJDBC in Report and how you can import data sources of different types via OOJDBC into a catalog.
This topic contains the following sections:
- Main Frame for OOJDBC in Report
- Using XML File as Data Source via OOJDBC
- Using Class File as Data Source via OOJDBC
- Using CSV File as Data Source via OOJDBC
Main Frame for OOJDBC in Report

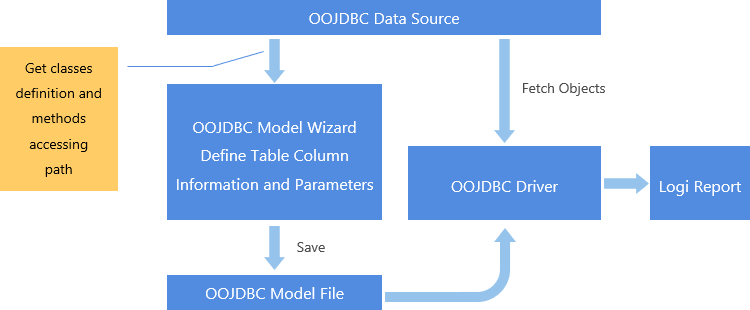

OOJDBC (Object Oriented Java Database Connection) is defined to cover an OODS (Object Oriented Data Source) with a JDBC interface. It is similar to a JDBC driver and is based on a Java application, EJB (Enterprise Java Bean), or LDAP (Light Weight Directory Access Protocol), which can be defined as a database. Report provides a tool named Model Wizard, which you can run to import data via an OOJDBC data source.
OOJDBC in Report includes the Model Wizard and OOJDBC Driver.
- Model Wizard
Opens/Saves model file
Defines a Java class as a table
Defines a method as a column
How to access the instance of the class - OOJDBC Driver
Reads the table/column definitions from model file
Returns metadata to Report
Constructs QUERY data
Returns record to Report
Using XML File as Data Source via OOJDBC
Designer supports accessing XML data sources via OOJDBC.
You can also use XML directly in Designer which is recommended over using OOJDBC. See XML Connections.
Example 1: Importing the XML File Indirectly
This example uses employee.xml in <install_root>\help\samples\OOJDBC
. Save the file to <install_root>\Demo\Reports\TutorialReports
first, then take the following tasks to import the file to a catalog.
Task 1: Import the XML file using the Model Wizard
- Run ModelWizard.bat in
<install_root>\bin
to open the Object Source Wizard. - Navigate to File > Add Table.

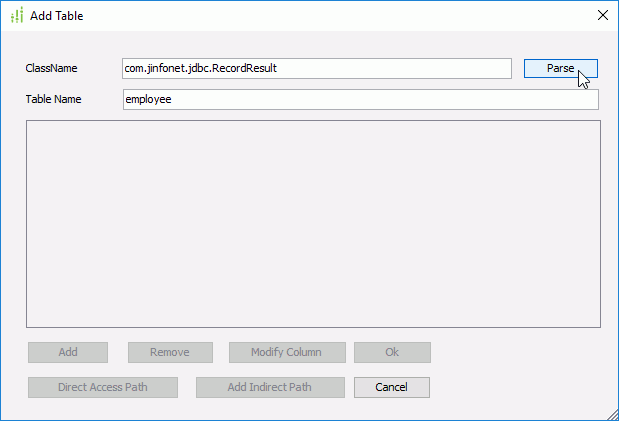

- In the Add Table dialog box, specify the class and table name. Here, we type in the Table Name as employee and ClassName as com.jinfonet.jdbc.RecordResult (a class of Report). Then select Parse.
The following table shows the explanations about the other options in the dialog box.
Option Description Column Name Methods of the class you have defined. SQL Type Returned type of your column name. You can double-click the field and choose the SQL type you want. Precision Precision of the current column. You can select on the field and change it manually. Scale Scale of the current column. You can also select on the field and change it manually. Nullable Current status of the column (null or not). You can double-click the field and choose the current status: Nullable, No Nulls, or Nullable Unknown. Currency If your DBField contains "$", you should select it. Add Select to add new columns. Remove Select to remove the specified column. Modify Column Select to modify parameters of the current table. OK Select to add the table. Direct Access Path Select to edit the path for the table. OOJDBC driver can save and restore the table you have defined through this path. Cancel Select to cancel the operation and close the Add Table dialog box. - Select Remove to get rid of all the existing columns in the Add Table dialog box, and then select Add to add a new column.

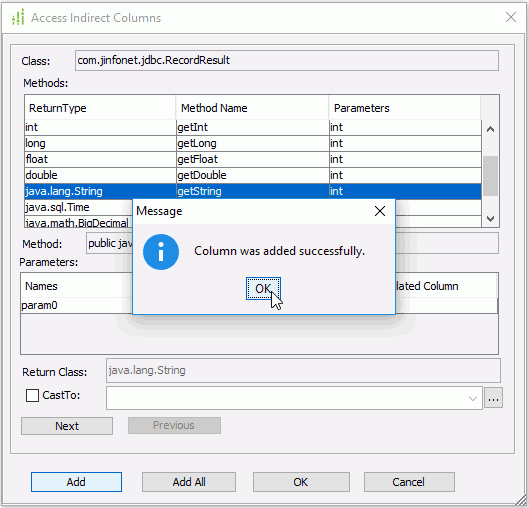

- In the Access Indirect Columns dialog box, specify the data type of the column. In this example, we add a column of String type, so select java.lang.String in the ReturnType column of the Methods box, then select Add. Select OK to return to the Add Table dialog box.

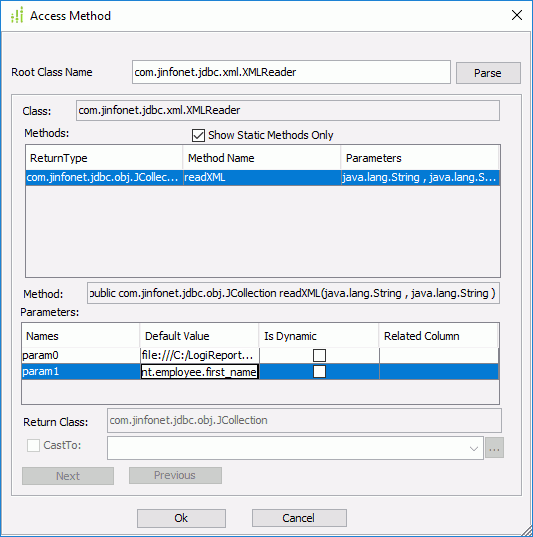

- In the Add Table dialog box, select Direct Access Path to define the accessing path of the table in the Access Method dialog box.
- In the Root Class Name text box, type com.jinfonet.jdbc.xml.XMLReader, then select Parse
- Select Show Static Methods Only.
- Select the method showing in the Methods box.
- In the Parameters box, specify the default values for param0 and param1. For example, for param0, type file:///C:/Report/Designer/Demo/Reports/TutorialReports/employee.xml, and for param1, type record employee root employee column first_name 12 path document.employee.first_name.
- param0 is the full path of the valid XML file.
- param1 is the query sentence for selecting the column to use for reporting from the XML file. "record" is the keyword, followed with the XML file name (without the extension .xml). Following this is another keyword "column" with the actual tag name from the XML file.
For example, in the following code quoted from employee.xml:
<employee>
<id>0799</id>
<first_name>Jack</first_name>
<second_name>Smith</second_name>
<birthday>12/28/75</birthday>
<title>manager</title>
<salary>$7000.00</salary>
</employee>Since "first_name" is required, you should give the actual tag name here. The number is the SQL type of the column. "12" is for String type. For more information about Java SQL types, refer to the JDK package java.sql.types.java.
- In param1, the order of the columns is dependent on the default values you have provided when adding the column.
- Designer does not support the following SQL types: BINARY, VARBINARY, and LONGVARBINARY.
- Select OK to return to the Add Table dialog box.
- Now you can see that the column is added in the Add Table dialog box. You can rename the default column name by editing in the Column Name column. You should give the name as the actual tag definition in the .xml file, for example, first_name.
- Select OK. The employee table is now added to the Object Source Wizard.
- Navigate to File > Save in the wizard. Designer prompts you to save the ODF file. You should save it to
<install_root>\lib
or the directory where the catalog is (the same ODF file cannot exist in both<install_root>\lib
and the directory where the catalog is located). Here we save it as employee.odf.
- If you use dynamic parameters, that is, you select the Is Dynamic option in the Access Method dialog box, the syntax of the method is an array of Boolean values which indicates which parameter is dynamic at runtime. If the parameter is dynamic, the value should be prompted and initialized before executing an SQL. In addition, when you choose the Is Dynamic option, this parameter is passed to Designer. After you create a connection in the Catalog Manager, you can find it in the Parameters node. For more information, see Example 3: XML file with dynamic parameters.
- If you have purchased the readable key, you can also save the ODF file (oojdbc data definition file) to XML (with extension .odf.xml). For files which have already been saved with an .xml extension, in order to make them available, you can manually change the extension from .xml to .odf.xml.
Task 2: Import the ODF file into a catalog
- Start Designer.
- Navigate to File > New Catalog.
- In the New Catalog dialog box, specify the catalog name, the data source name, and the path. You should store the catalog in the directory where you saved the ODF file. For example, if you saved the ODF file in
C:\odf
, you should save the new catalog inC:\odf
too. - In the Catalog Manager, right-click the node of a data source and select New JDBC Connection from the shortcut menu. Select JDBC in the Select Connection Type dialog box.

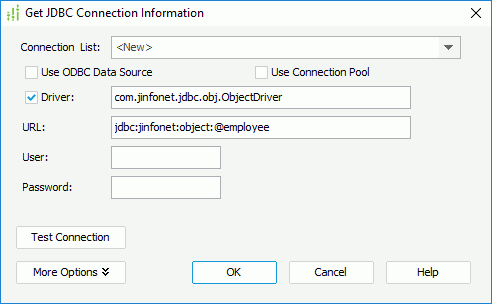

- In the Get JDBC Connection Information dialog box, type com.jinfonet.jdbc.obj.ObjectDriver in the Driver text box, type jdbc:jinfonet:object:@Filename in the URL text box. @Filename should be the ODF file name. In the example, it is jdbc:jinfonet:object:@employee.
- Select OK to set up the connection.
- In the Add Tables/SQL dialog box, select Add Tables (if Designer does not display the dialog box, select Resume on the Catalog Manager toolbar).

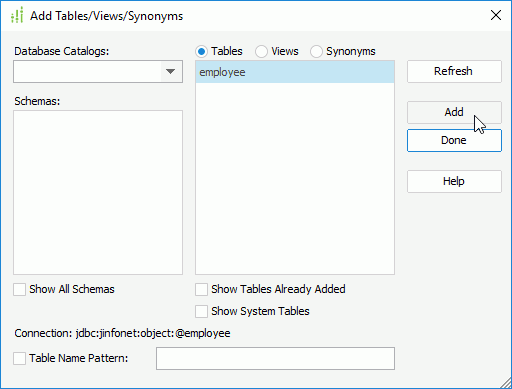

- In the Add Tables/Views/Synonyms dialog box, select the table employee and select Add.
- Select Done to close the Add Tables dialog box.
By now, you have added the table "employee" into the catalog. You can use it to create a query or business view and then develop reports as required. When you publish the catalog and reports to Server, whether the ODF file is located in <install_root>\lib
or in the directory where the catalog is located, Designer publishes it to the path where the catalog is located on the Server side.
Example 2: Importing the XML File Directly
The process of importing an XML file with the Model Wizard as explained in Example 1 can be simplified with Report's built-in XML file import functionality.
This example uses orgchart_data.xml in <install_root>\help\samples\OOJDBC
. Store the file to <install_root>\Demo\Reports\TutorialReports
first, then take the following tasks to import the file to a catalog.
Task 1: Import the XML file directly using the Model Wizard
- Run ModelWizard.bat in
<install_root>\bin
to open the Object Source Wizard. - Navigate to File > Import XML Files. Designer displays the Import XML dialog box.

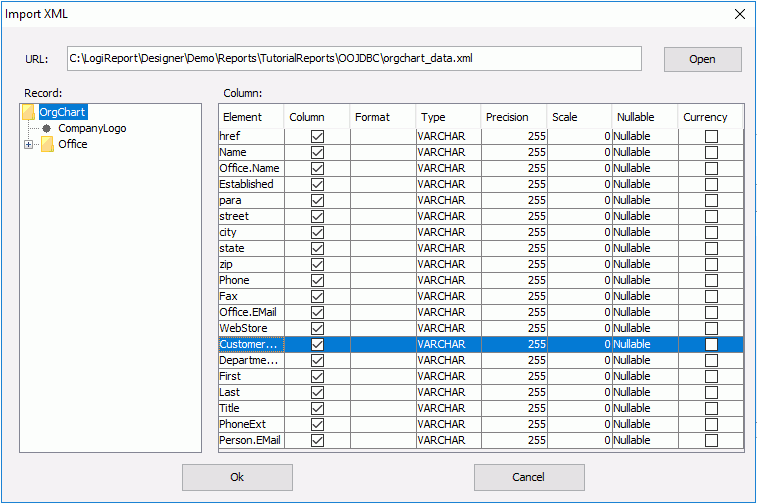

- Select Open to browse to the file orgchart_data.xml.
- You can select Column for all elements and change their format and type.
When using certain SQL types, you should specify a standard format. For example,
- If the time format is like Tue Aug 27 16:04:00 BST 2002, you should select:
Type: Timestamp
Format: EEE MMM dd hh:mxm:ss zzz yyyy - If the time format is like 2002-11-22 11:09:08, you should select:
Type: Timestamp
Format: yyyy-MM-dd hh:mm:ss - If the time format is like 11/18/2002 08:20:00, you should select
Type: Timestamp
Format: M/d/yyyy hh:mm:ss - If the time format is like 1999-12-05, you should select:
Type: date
Format: yyyy-MM-dd - If the time format is like 08:20:00, you should select:
Type: time
Format: hh:mm:ss - If the number is like 50,600, you should select:
Type: integer
Format: ###,### - If the currency is like $50,600, you should select:
Type: integer
Format: $###,###
- If the time format is like Tue Aug 27 16:04:00 BST 2002, you should select:
- Select OK and the table OrgChart is added to the Object Source Wizard.
- Navigate to File > Save in the wizard. Designer prompts you to save the ODF file. You should save it to
<install_root>\lib
or to the directory where the catalog is located (the same ODF file cannot exist in both<install_root>\lib
and the directory where the catalog is located). Here, we save it as orgchart.odf.
Task 2: Import the ODF file into a catalog
- Start Designer.
- Navigate to File > New Catalog.
- In the New Catalog dialog box, specify the catalog name, the data source name, and the path. You should store the catalog in the directory where you saved the ODF file. For example, if you saved the ODF file in
C:\odf
, you should save the new catalog inC:\odf
too. - In the Catalog Manager, right-click the data source node and select New JDBC Connection from the shortcut menu. Select JDBC in the Select Connection Type dialog box.
- In the Get JDBC Connection Information dialog box, type com.jinfonet.jdbc.obj.ObjectDriver in the Driver text box, type jdbc:jinfonet:object:@Filename in the URL text box. @Filename should be the ODF file name. In the example, it is jdbc:jinfonet:object:@orgchart.
- Select OK to set up the connection.
- In the Add Tables/SQL dialog box, select Add Tables (if Designer does not display the dialog box, select Resume on the Catalog Manager toolbar).
- In the Add Tables/Views/Synonyms dialog box, select the OrgChart table and select Add.
- Select Done to close the Add Tables dialog box.
By now, you have added the OrgChart table into the catalog. You can use it to create a query or business view and then develop reports. When you publish the catalog and reports to Server, whether you save the ODF file in <install_root>\lib
or in the directory where the catalog is located, Designer publishes it to the path where the catalog is located on the Server side.
Example 3: XML File with Dynamic Parameters
When you design a report from the tables you import through OOJDBC, and the tables have the same input parameters, but you do not want to specify the same parameters again, Designer enables you to bind parameters in a catalog, so they can share the same parameter value.
This example demonstrates how to import tables with dynamic parameters from the ODF file generated by the Model Wizard.
Task 1: Import the XML file using the Model Wizard
- Run ModelWizard.bat in
<install_root>\bin
to open the Object Source Wizard. - Add two tables as seen in Example 1. The first table employee1 has one String type column, and the second table employee2 has one Int type column. They have the same input parameter for param0. The default value is
h:\xml\employee.xml
. Make sure to select the Is Dynamic option. - In the Object Source Wizard, navigate to File > Save. Designer prompts you to save the ODF file. You should save it to
<install_root>\lib
or the directory where the catalog is (the same ODF file cannot exist inboth <install_root>\lib
and the directory where the catalog is located). Here we save it as xmlparam.odf.
Task 2: Import the ODF file into a catalog
- Start Designer.
- Navigate to File > New Catalog.
- In the New Catalog dialog box, specify the catalog name, the data source name, and the path. You should store the catalog in the directory where you saved the ODF file. For example, if you saved the ODF file in
C:\odf
, you should save the new catalog inC:\odf
too. - In the Catalog Manager, create a String type parameter with the name path in an existing catalog data source. You can bind this parameter to the parameters in the tables that you import through OOJDBC.
- Right-click the node of the same catalog data source and select New JDBC Connection from the shortcut menu. Select JDBC in the Select Connection Type dialog box.
- In the Get JDBC Connection Information dialog box, type com.jinfonet.jdbc.obj.ObjectDriver in the Driver text box, type jdbc:jinfonet:object:@Filename in the URL text box. @Filename should be the ODF file name. In the example, it is jdbc:jinfonet:object:@xmlparam.
- Select OK to set up the connection.
- In the Add Tables/SQL dialog box, select Add Tables (if Designer does not display the dialog box, select Resume on the Catalog Manager toolbar).
- In the Add Tables/Views/Synonyms dialog box, select the employee1 table and select Add.

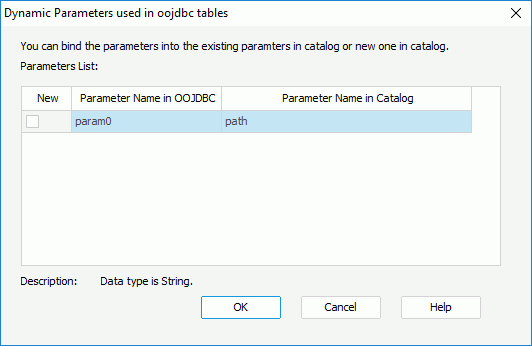

- In the Dynamic Parameter used in oojdbc tables dialog box, clear the checkbox in the New column and select path from the drop-down list in the Parameter Name in Catalog column to bind param0 to the path parameter.
- Repeat the preceding steps to add the employee2 table and bind its parameter param0 to the path parameter. Now the parameters in the two tables share the same parameter.
- Create a query on the newly inserted tables and create a page report using the query.
- When you preview the report, Designer displays the Enter Parameter Values dialog box, asking you to specify the parameter. You only need to type in the path of the imported XML file once, because the parameter is shared with the parameters in the two tables.
You can modify the links between the parameters in OOJDBC and parameters in the catalog. To do this:
- In the Catalog Manager, select the table with the dynamic parameters that are to be modified.
- Right-click on the selected table, and select Parameters from the shortcut menu.
- Highlight the parameter in the catalog, and then select the parameter from the drop-down list to bind it to the parameter in OOJDBC.
Using Class File as Data Source via OOJDBC
This example shows how to generate the ODF file in a different way using the demo file demo.zip in <install_root>\help\samples\OOJDBC
, which contains all the necessary classes and methods needed for making the OOJDBC data source work with Java objects.
Preparations
Before the OOJDBC data source works with Java objects, you should have finished the following preparations.
- You should define a class that specifies the column name and the method of getting data from this column. In this example, the class Products.java in demo.zip takes this role. This class file contains the public int getProductID() method, which implies that the column name is ProductID and you can get the product ID via this method.
- You should publish a method to access a group of products. That means OOJDBC needs a result set with multiple rows, and each row is one of the products, so that you should define a class that can retrieve the rows. In this example, the SQLReader.java Java file in demo.zip takes this role. In this Java file, there is a static* method JCollection execSQL(String jdbcDriver, String url, String sql), and this method returns a collection that contains the rows of the products. This collection class is com.jinfonet.jdbc.obj.JCollection.
- You should also edit the batch files used to start the Model Wizard, Designer, and Server before you can import the product table and use it to generate reports. To do this, save demo.zip in
<install_root>\help
, then add it to the ADDCLASSPATH variable of setenv.bat in<install_root>\bin
of both Designer and Server. The setenv.bat file updates the class path for both the Model Wizard and Designer.
Task 1 : Import the class file using the Model Wizard
- Run ModelWizard.bat in
<install_root>\bin
to open the Object Source Wizard. - Select Add Table.
- In the ClassName field of the Add Table dialog box, type com.jinfonet.jdbc.demo.Products, type demo in the Table Name text box, and then select Parse.
- Select Direct Access Path.
- In the Access Method dialog box, type com.jinfonet.jdbc.demo.SQLReader in the Root Class Name text box, then select Parse.
- In the Methods box, select the execSQL method.
- In the Parameters box, type the following default values:
- Param0 (the driver of the database): org.hsqldb.jdbcDriver
- Param1 (the connection URL of the database):
jdbc:hsqldb:C:\LogiReport\Designer\Demo\db\JRDemo
- Param2 (the user name): sa
- Param3 (the password): (no value)
- Param4 (the SQL statement): select * from products
- Select OK and the demo table is added to the Object Source Wizard.
- Navigate to File > Save in the wizard. Designer prompts you to save the ODF file. You should save it to
<install_root>\lib
or the directory where the catalog is (the same ODF file cannot exist in both<install_root>\lib
and the directory where the catalog is located). Here we save it as demo.odf.
Task 2 : Import the ODF file into a catalog
- Start Designer.
- Navigate to File > New Catalog.
- In the Catalog Name dialog box, specify the catalog name, the data source name, and the path. You should store the catalog in the directory where you saved the ODF file. For example, if you saved the ODF file in
C:\odf
, you should save the new catalog inC:\odf
too. - In the Catalog Manager, right-click the node of a data source and select New JDBC Connection from the shortcut menu. Select JDBC in the Select Connection Type dialog box.
- In the Get JDBC Connection Information dialog box, type com.jinfonet.jdbc.obj.ObjectDriver in the Driver text box, type jdbc:jinfonet:object:@Filename in the URL text box. @Filename should be the .odf name you have saved but do not include the extension. In the example, it should be jdbc:jinfonet:object:@demo.
- Select OK to set up the connection.
- In the Add Tables/SQL dialog box, select Add Tables (if Designer does not display the dialog box, select Resume on the Catalog Manager toolbar).
- In the Add Tables/Views/Synonyms dialog box, select the demo table and select Add.
- Select Done to close the Add Tables dialog box.
By now, you have added the table "demo" into the catalog. You can use it to create a query or business view and then develop reports as required. When you publish the catalog and reports to Server, whether the ODF file is located in <install_root>\lib
or in the directory where the catalog is located, Designer publishes it to the path where the catalog is located on the Server side.
Report provides an interface com.jinfonet.interfaces.query.TableFilter and a simple implementation com.jinfonet.jdbc.obj.TableFilterImpl, which you can use in this example to improve the performance of the select and WHERE clauses in a query. You can extend TableFilterImpl to create your own Reader class. In addition, Report provides the demo FilterSQLReader.java in the file demo.zip for your reference. However if you are using FilterSQLReader.java instead of SQLReader.java, you should type com.jinfonet.jdbc.demo.FilterSQLReader in the Root Class Name text box of the Access Method dialog box.
Using CSV File as Data Source via OOJDBC
Designer supports CSV as data sources which can be accessed via OOJDBC. You can use this method to import Excel files by using Excel to save the report as .csv.
The following example demonstrates how to import a CSV file to an ODF file generated by the Model Wizard. This example uses employee.csv in <install_root>\help\samples\OOJDBC
. Store it to <install_root>\Demo\Reports\TutorialReports
first, then take the following tasks to import the file to a catalog.
Task 1: Import the CSV file directly using the Model Wizard
- Run ModelWizard.bat in
<install_root>\bin
to open the Object Source Wizard. - Navigate to File > Import Text Files.

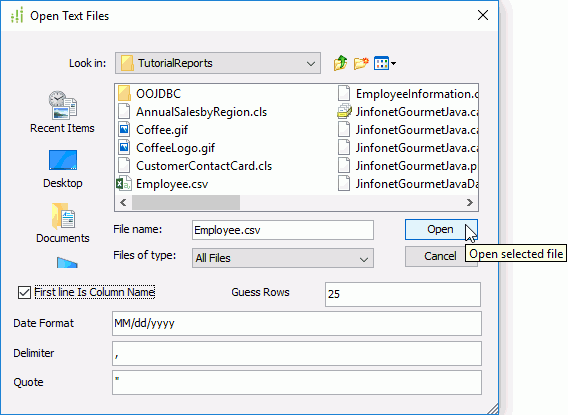

- In the Open Text Files dialog box, browse to the file employee.csv and then select First Line Is Column Name.

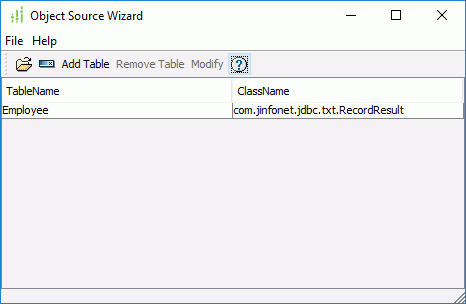

- Select Open and the table Employee is added to the Object Source Wizard.
- Navigate to File > Save in the wizard. Designer prompts you to save the ODF file. You should save it to
<install_root>\lib
or to the directory where the catalog is (the same ODF file cannot exist in both<install_root>\lib
and the directory where the catalog is located). Here, we save it as employee_csv.odf.
Task 2: Import the ODF file into a catalog
- Start Designer.
- Navigate to File > New Catalog.
- In the New Catalog dialog box, specify the catalog name, the data source name, and the path. You should store the catalog in the directory where you saved the ODF file. For example, if you saved the ODF file in
C:\odf
, you should save the new catalog inC:\odf
too. - In the Catalog Manager, right-click the node of a data source and select New JDBC Connection from the shortcut menu. Select JDBC in the Select Connection Type dialog box.
- In the Get JDBC Connection Information dialog box, type com.jinfonet.jdbc.obj.ObjectDriver in the Driver text box, type jdbc:jinfonet:object:@Filename in the URL text box. @Filename should be the ODF file name. In the example, it is jdbc:jinfonet:object:@employee_csv.
- Select OK to set up the connection.
- In the Add Tables/SQL dialog box, select Add Tables (if Designer does not display the dialog box, select Resume on the Catalog Manager toolbar).
- In the Add Tables/Views/Synonyms dialog box, select the table Employee and select Add.
- Select Done to close the Add Tables dialog box.
By now, you have added the Employee table into the catalog. You can use it to create a query or business view and then develop reports using the query and business view. When you publish the catalog and reports to Server, whether the ODF file is located in <install_root>\lib
or in the directory where the catalog is located, Designer publishes it to the path where the catalog is located on the Server side.
Comments
0 comments
Please sign in to leave a comment.
